BROWN UNIVERSITY
TURBINE GENERATOR PACKAGE
FEATURED
TURBINE GENERATOR PACKAGE

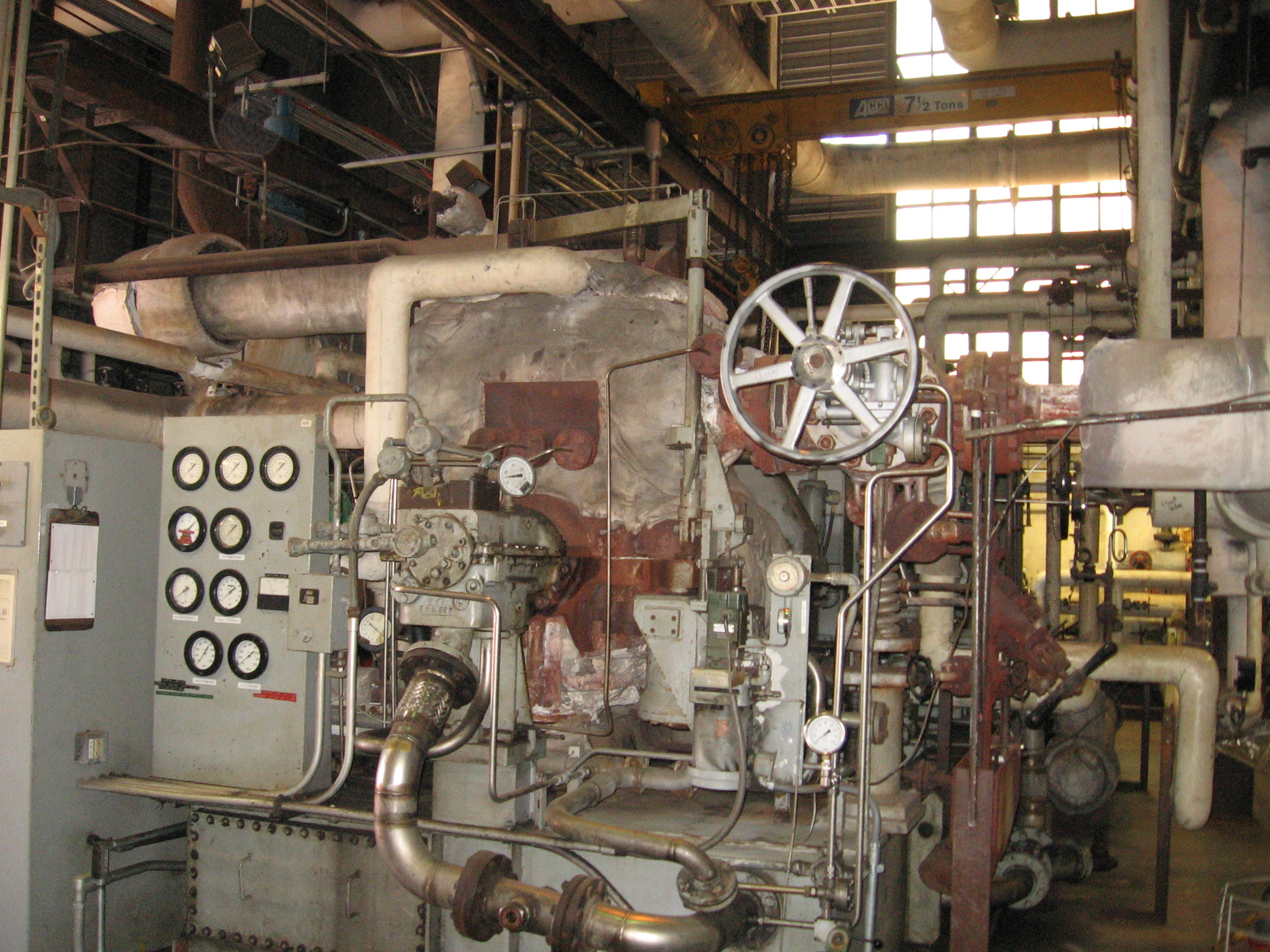

Turbine
Make
Elliot
Model
25RV5
Serial
Number BO04001 Frame 2SRV5
Hp:
6236
RPM
6795
Steam
Inlet Pressure 900 psig
Steam
Temp 875 ºF
Exhausting
to 140 psig
With
the following Accessories:
- Insulation
and lagging
- T
& T valve

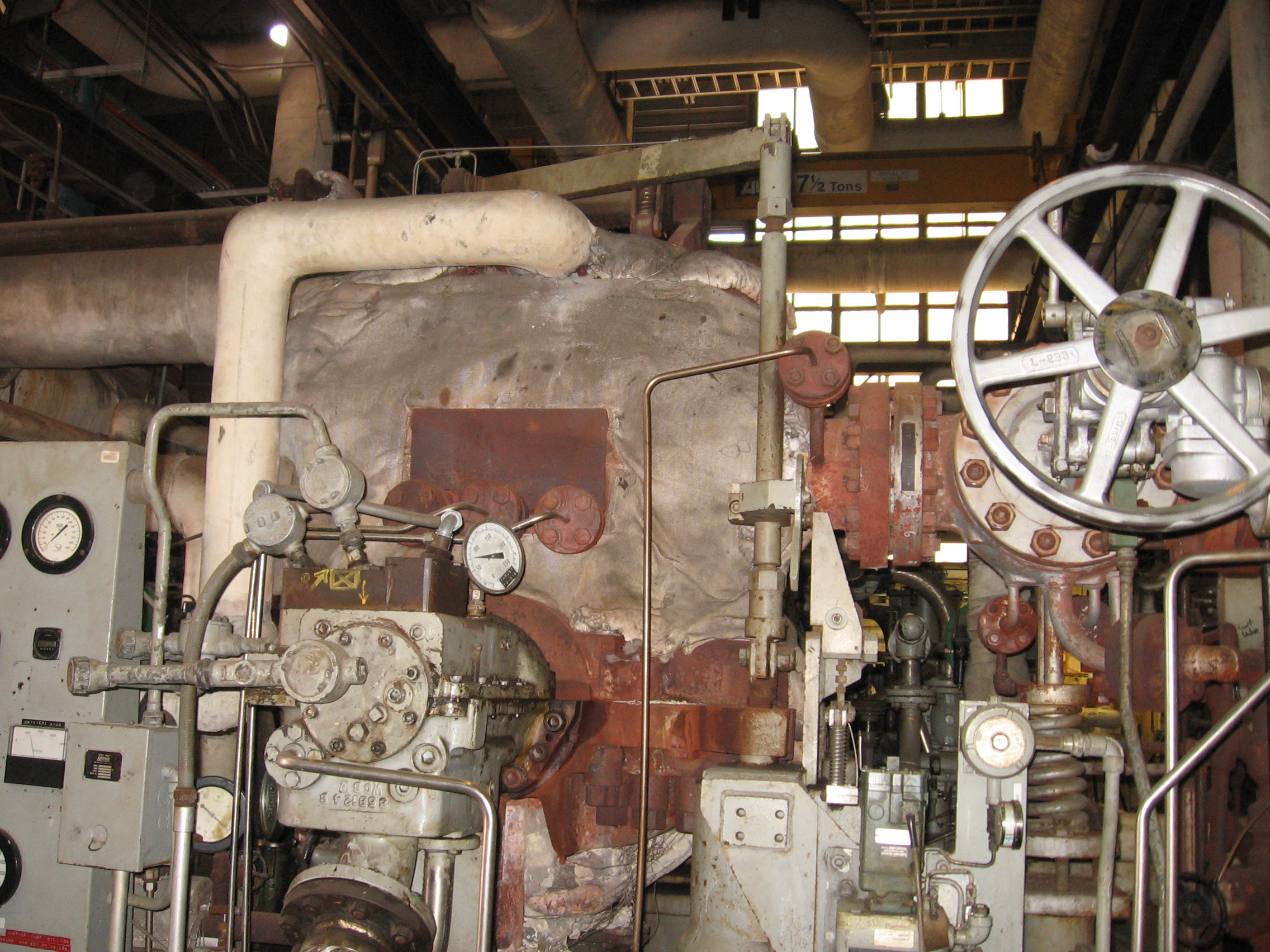

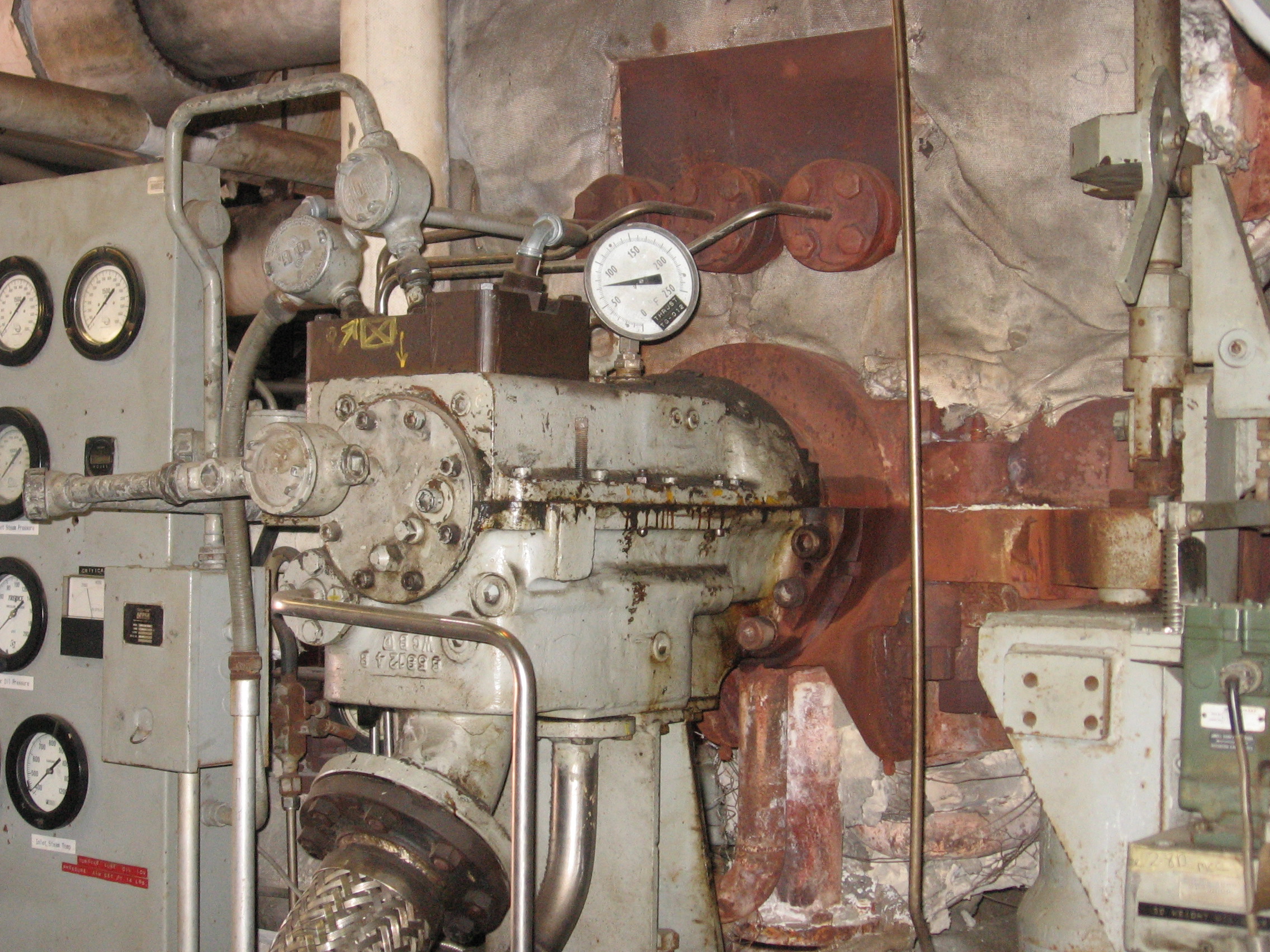

- Governor

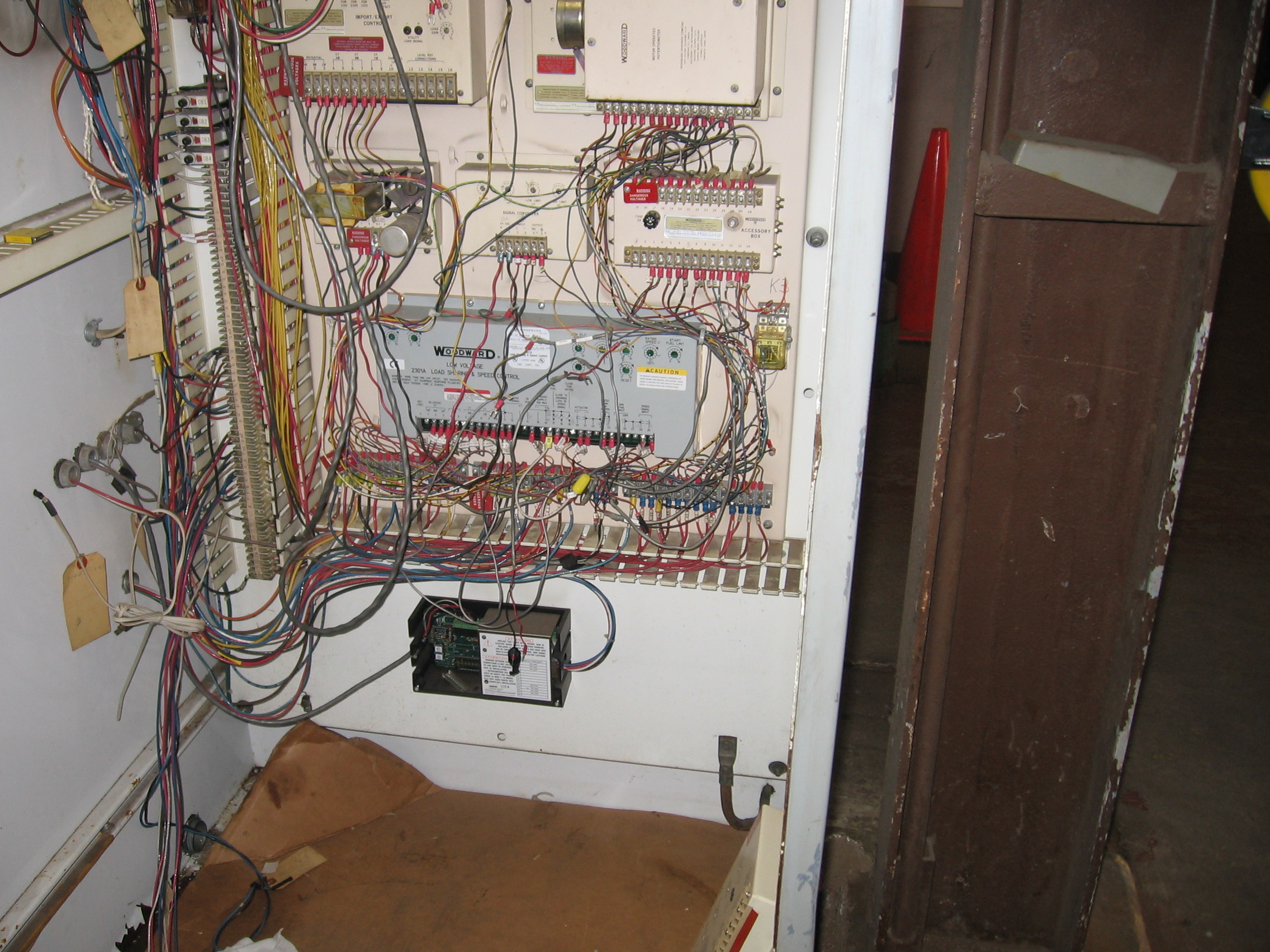

Woodward model 2301
- Local
TI at bearings

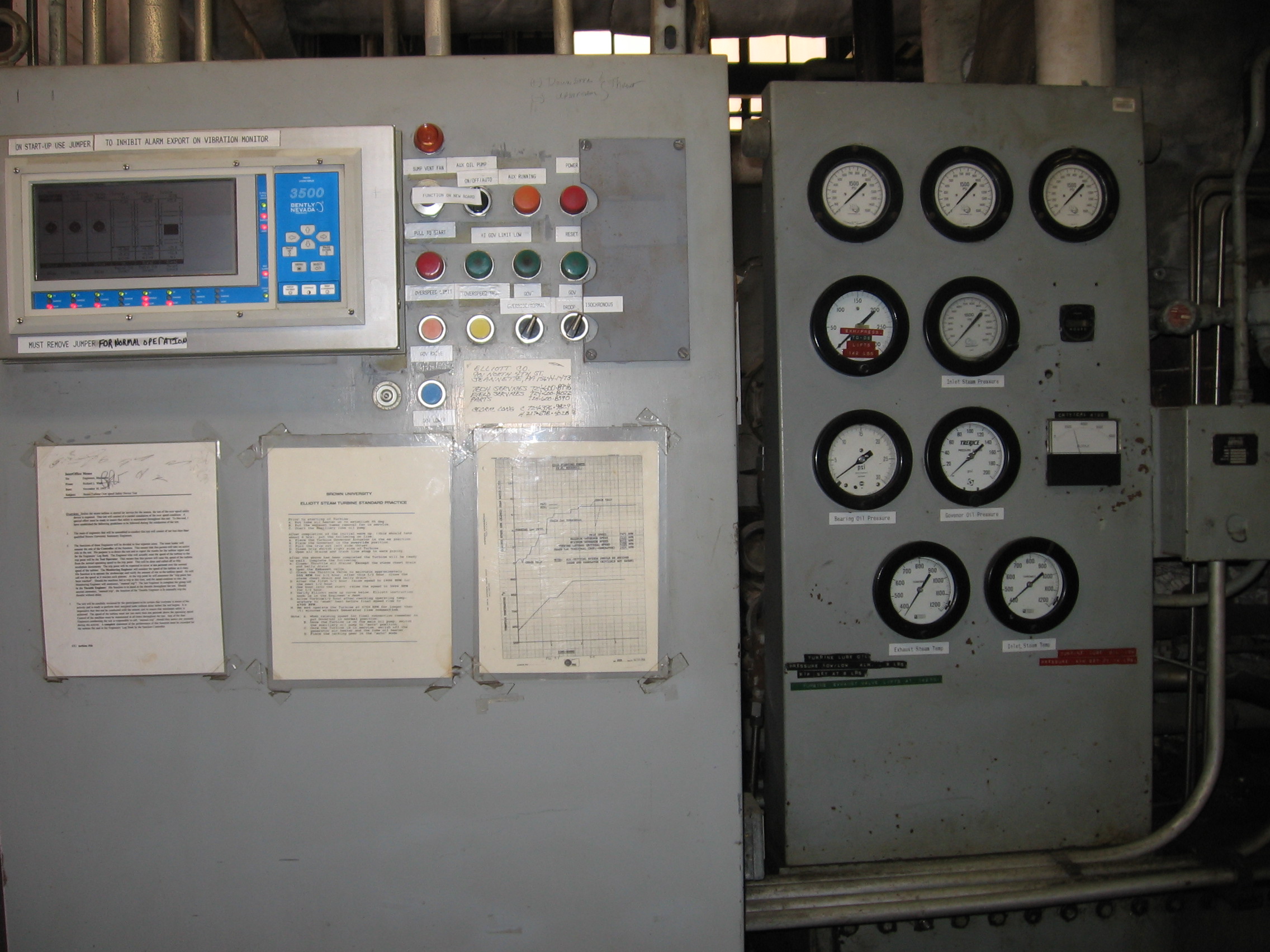

- Bentley
Nevada vibration equipment
- Lubrication
to turbine from separate lube console
with oil in base
- Gland
condenser and ejector

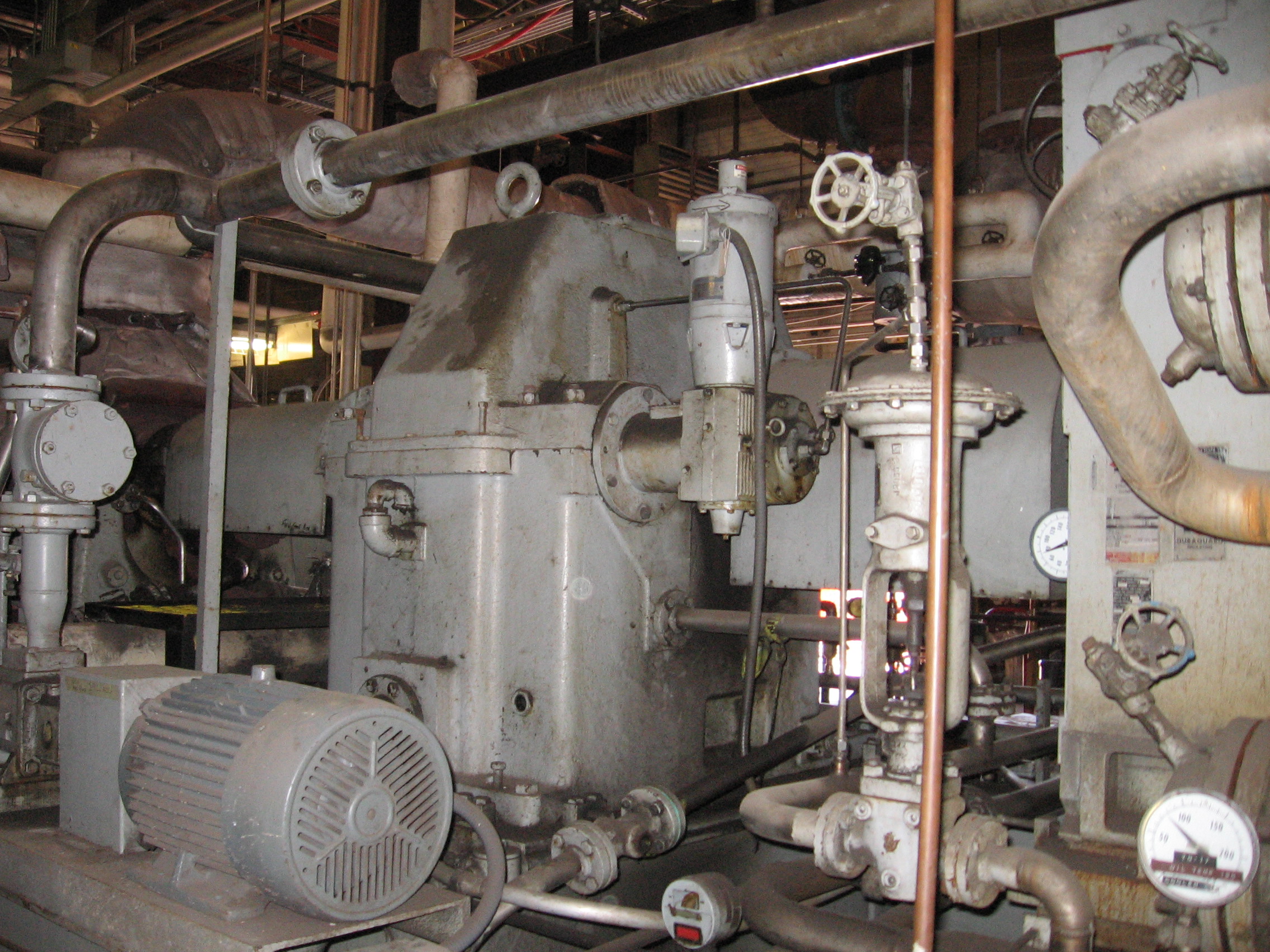

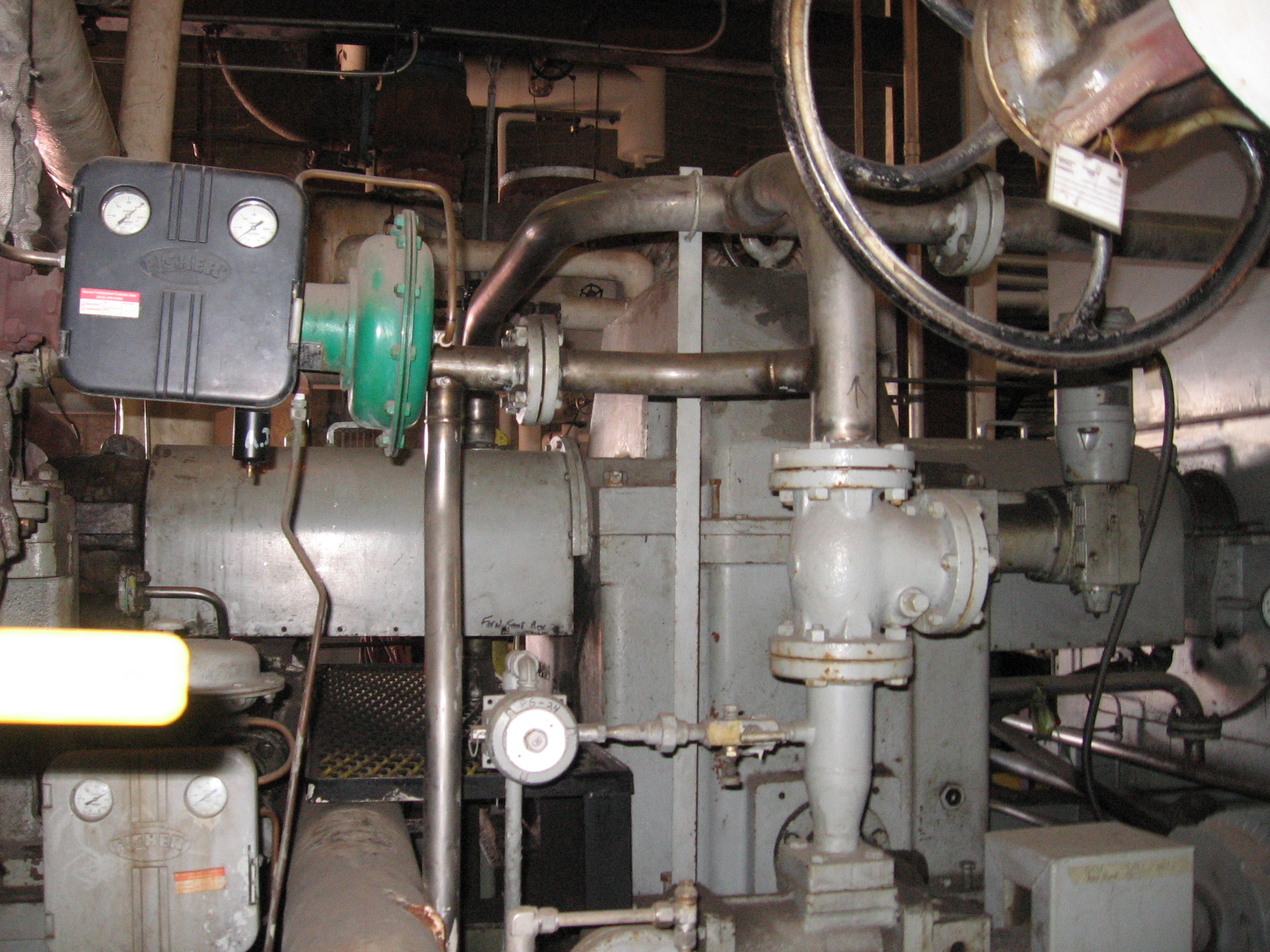

Gear
- Make:
Elliot
- Model:
C8R4
- Speed
ratio: 6795/1800
- Main
oil pump on LS gear shaft

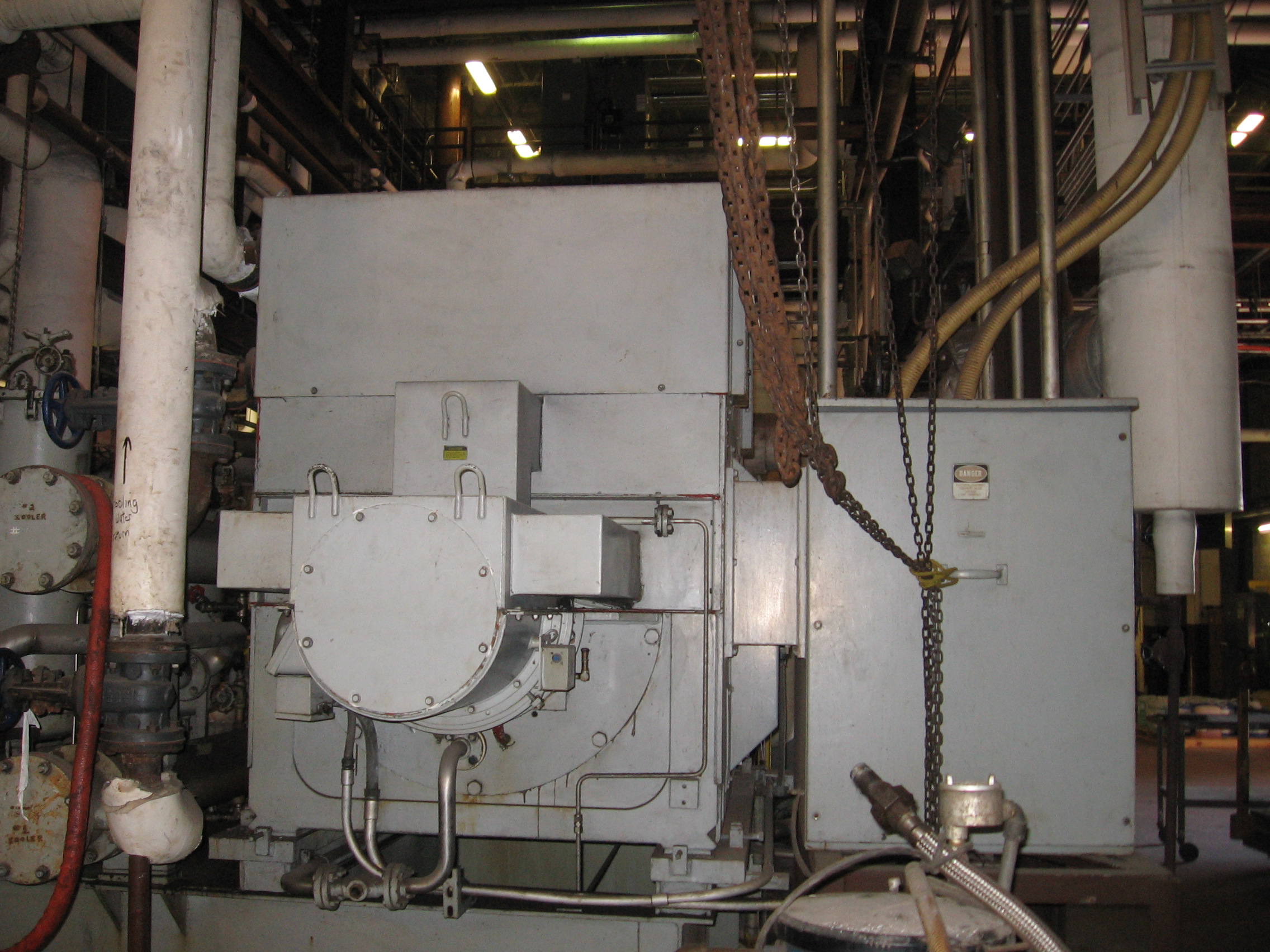

Generator
- Make:
Electrical Machinery
- Serial
Number 180277211
- Rating:
4375 kW
- Voltage:
4160V
- 60
hz, 3 phase

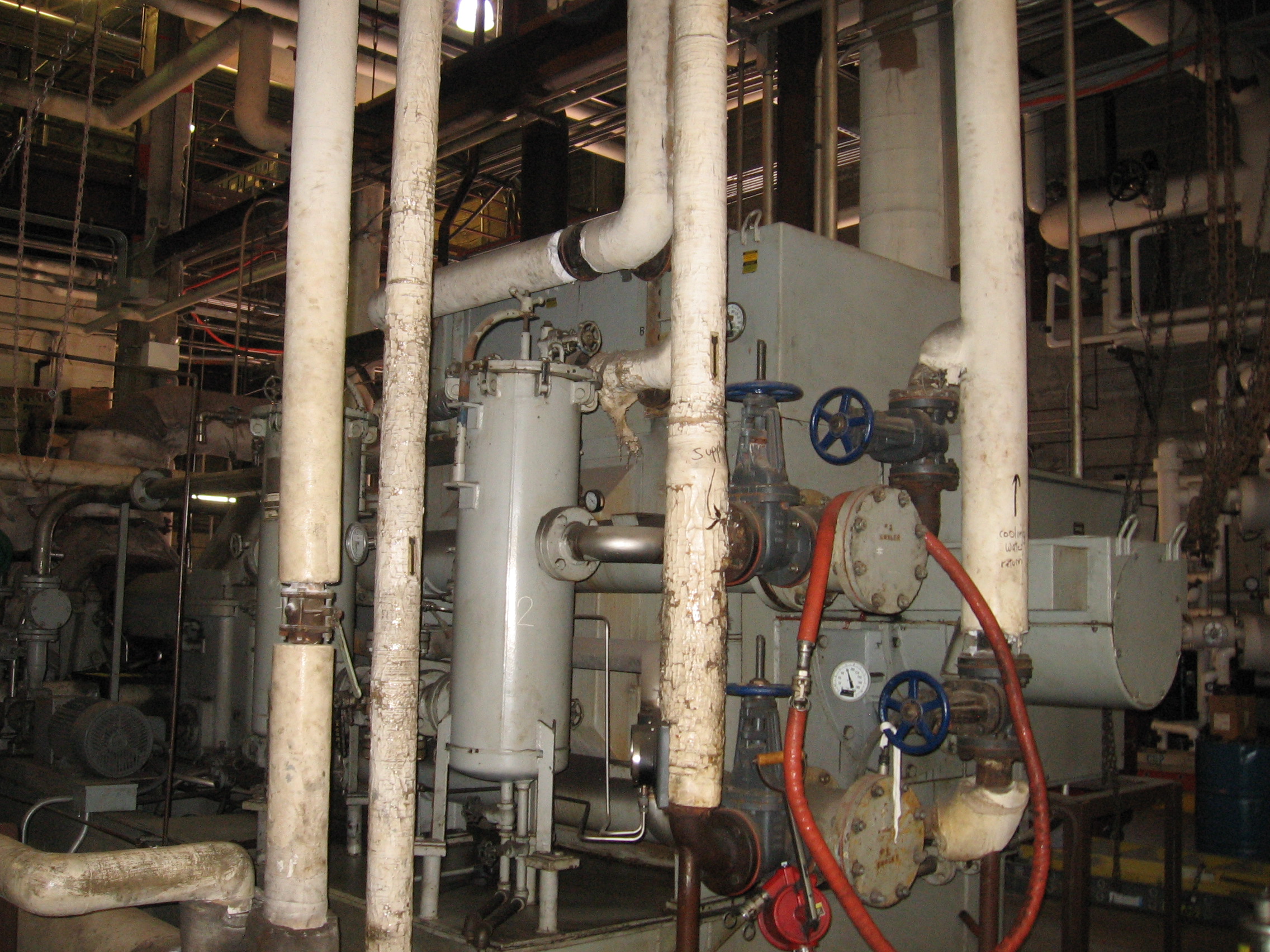

Lubrications
System
- Flanged
and welded stainless steel pipe
- Single
shell and tube cooler

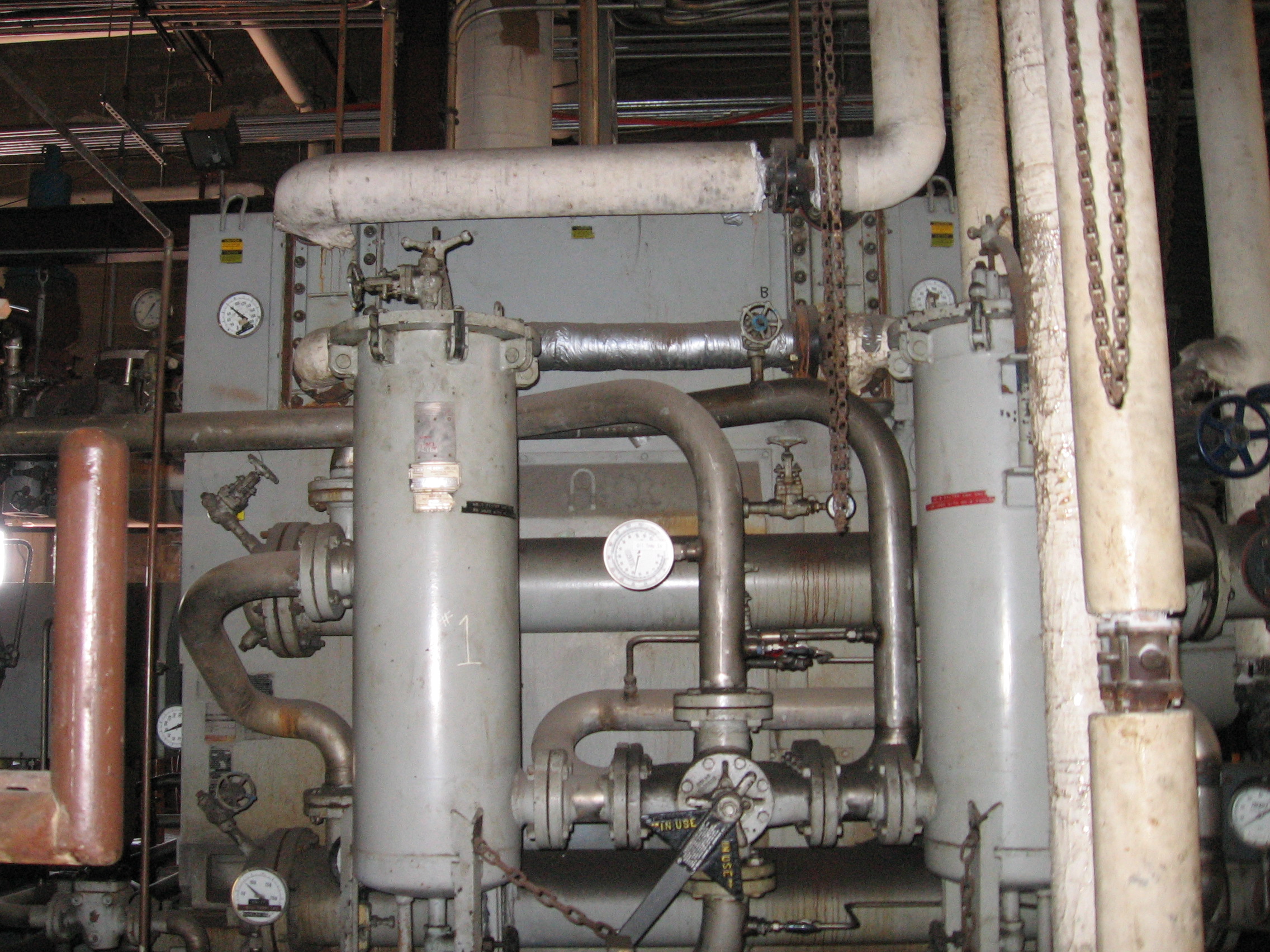

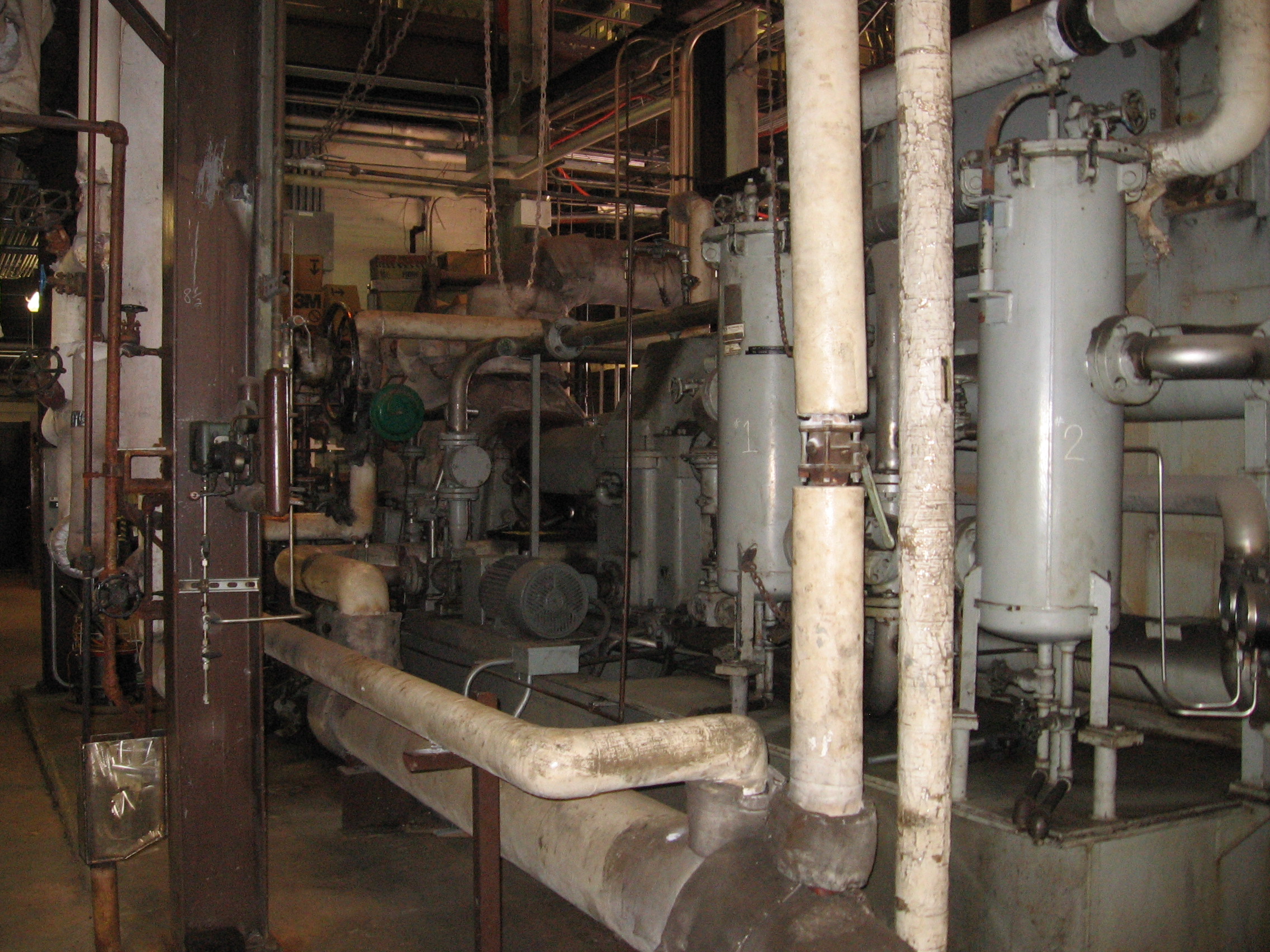

- Dual
filters
- 400
gallon reservoir
click
on image designations below for photos
1,
2, 3,
4, 5,
6, 7,
8, 9,
10,
11,
12,
13,
14,
15,
16,
17,
18,
19,
20, 21,
22,
23, 24,
25, 26,
27, 28
|
